Buildex

BUILDEX - Steel Frame Decking Screws, Self Drilling 10g x 47mm, Wing tip, Countersunk Ribbed Head 304SS

BUILDEX - Steel Frame Decking Screws, Self Drilling 10g x 47mm, Wing tip, Countersunk Ribbed Head 304SS

Regular price $302.99 AUD
Regular price $315.00 AUD Sale price $302.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Options


Decking Perth Stocked Logo

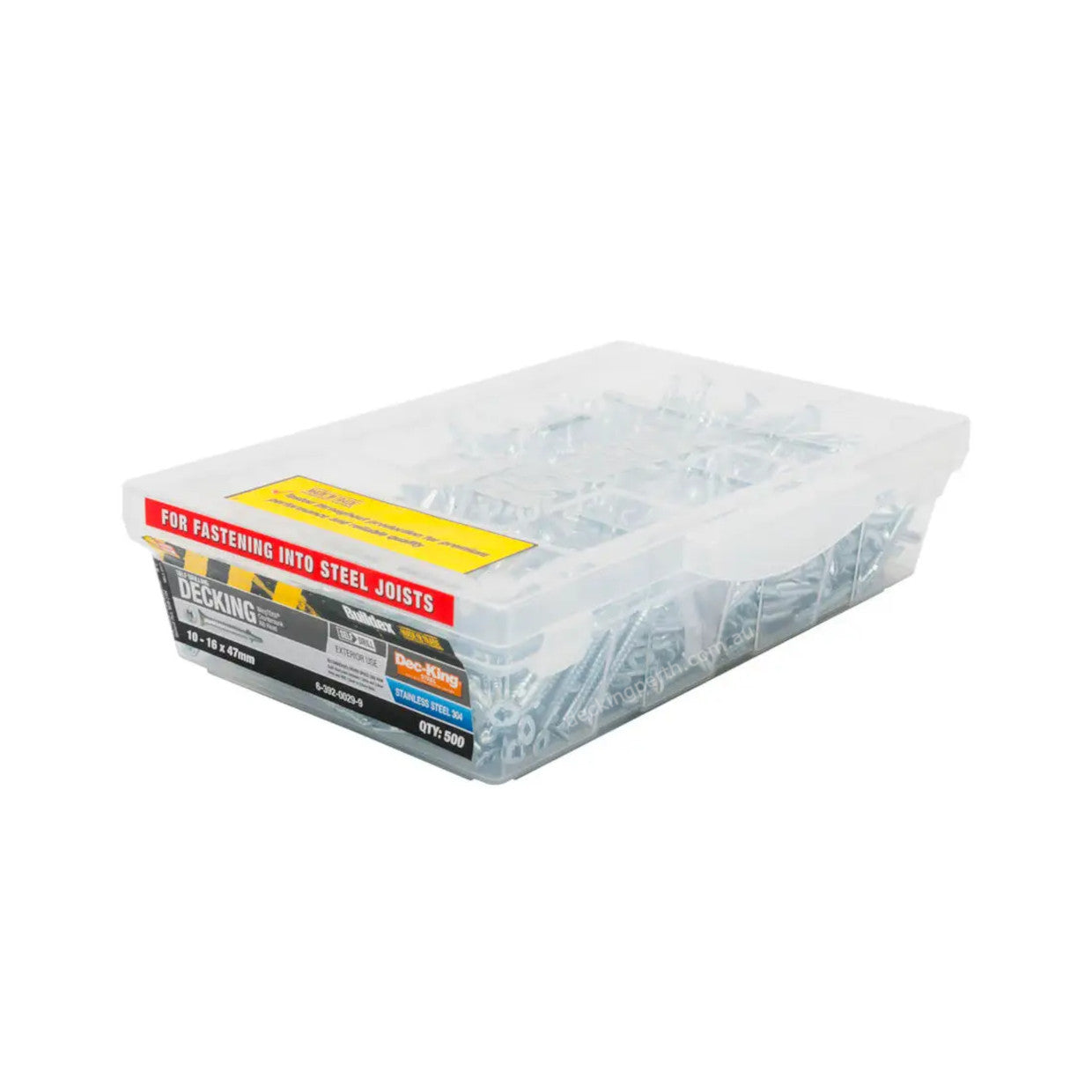

BUILDEX - Steel Frame Decking Screws, Self Drilling 10g x 47mm, Wing tip, Countersunk Ribbed Head 304SS SQ2 Drive - Box of 500

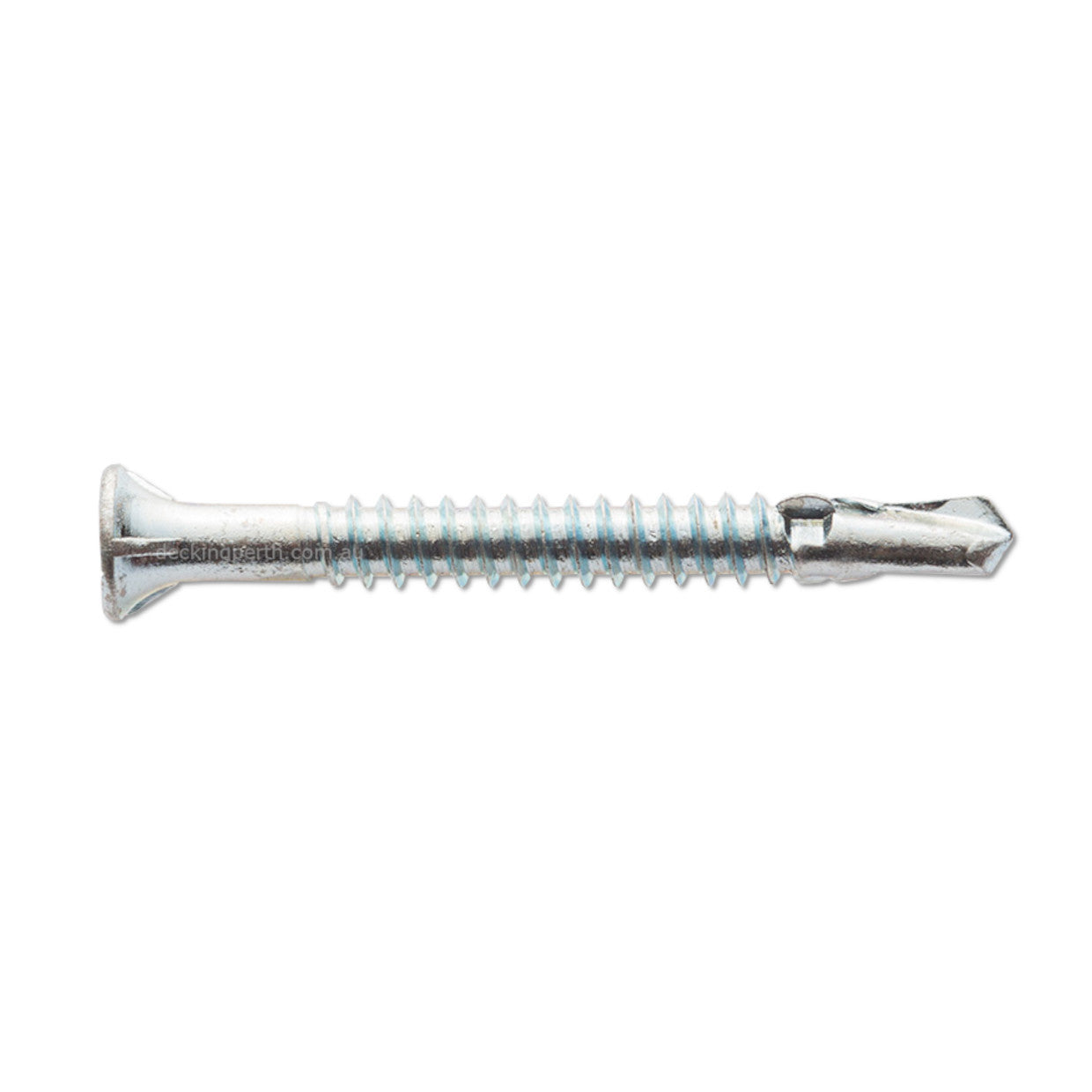

Buildex® Dec-King® is a stainless steel self drilling decking screw for fastening timber decking boards (12mm-22mm thick) to steel joists between 1.2mm and 2.4mm thick and HRS 1.5mm to 3.0mm thick.

Wings assist in producing a clearance hole in timber.

Wings break off once the screw starts to drill through the metal.

Applications

  • Decking to metal joists
  • Timber to metal frame
  • Decking, fences, chipboard, composite panels, timber floors
  • Small head for eaisier embedment of the head into the timber or board.
  • Ideal for corrosive conditions

Product Features

Materials: Fastener: Head and Shank: Stainless Steel Grade 304 | Drill Point: Stainless Steel 410 |

Finish: RustpertA Top Coat over Grade 304 Stainless Steel

Drive Bit: Square #2, not included with screws. Part #TXDIPSQS20050

Installation

  1. Use a number 2 Square Driver Bit.
  2. Use a mains powered or cordless screw driver with a drive speed of 3,000 RPM maximum.
  3. Fit the driver bit into the screw and place at the fastening position.
  4. Apply consistently firm pressure (end load) to the screw driver until the screw has fastened.

Mechanical Properties:

Single Shear Strength (Newton) 5,200  | Axial Tensile Strength (Newton) 8,200 | Torsion Strength (Newton-metre) 6.3

*Installation with impact drivers not recommended
